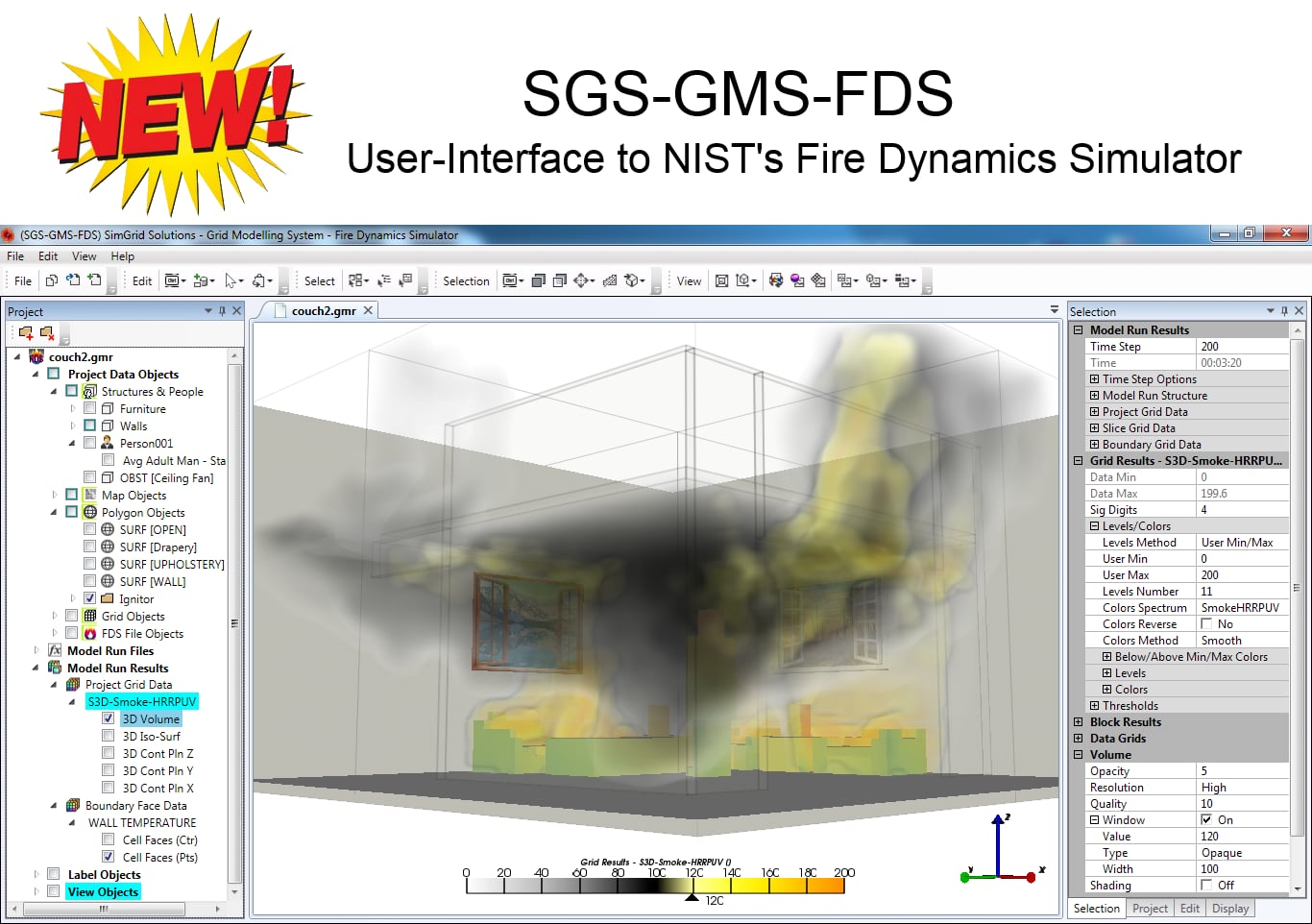

See Full-Length, Narrated SGS-GMS-FDS Demonstration Video Below...
Our Company
Our Products
Our Technology
Our Technology
After decades of experience using and developing 3D Simulation Software for Health & Safety Applications, we at SimGrid Solutions have focused on developing SGS-GMS, a core Grid Modeling System for creating User-Interfaces to a variety of Grid-Based Numerical Models (see "Our Technology" below).
SGS-GMS advantages include:
- Full 3D User Int
After decades of experience using and developing 3D Simulation Software for Health & Safety Applications, we at SimGrid Solutions have focused on developing SGS-GMS, a core Grid Modeling System for creating User-Interfaces to a variety of Grid-Based Numerical Models (see "Our Technology" below).
SGS-GMS advantages include:
- Full 3D User Interaction - Consistent with professional-quality 3D user-interfaces, GMS applications are driven by a GMS 3D Window, edit operations are undo-able, redo-able, escape-able and recoverable, data objects are managed within a GMS Data Tree, the properties of selected objects are managed with GMS Property Grids, and mode-trapping (e.g. the use of edit modes, dialog boxes) is avoided completely.
- Fast/Easy Project Development - GMS provides a very robust 3D editor for creating and modifying gridded structures and their associated cell/surface properties. GMS also provides a robust set of options for generating gridded structures from imported 2D/3D geometry.
- Fast/Easy Results Analysis - GMS provides a robust and growing array of functions to read, display, analyze and document results data (e.g. color-coded annotated 2D/3D contours, vectors, streams, plots, labels, animations, etc.), custom-developed for each specific application, using a variety of basic and advanced graphical tools (e.g. the Visualization Tool Kit, VTK).
- Improved Communications - By fully integrating multi-media production within project development and results analysis processes GMS applications provide a fast and easy method for modelers to fully describe their decisions and observations while they are developing, analyzing and documenting a simulation project.
Our Technology
Our Technology
Our Technology
SimGrid Solutions' Grid Modeling System (GMS) provides a unique, professional quality, fully-3D-emersive interface for importing, displaying, editing and documenting grid-based geometry/data to facilitate the development of new-generation user-interfaces to a wide variety of grid-based numerical models (see demo videos above).
SGS-GMS cont
SimGrid Solutions' Grid Modeling System (GMS) provides a unique, professional quality, fully-3D-emersive interface for importing, displaying, editing and documenting grid-based geometry/data to facilitate the development of new-generation user-interfaces to a wide variety of grid-based numerical models (see demo videos above).
SGS-GMS contains four core modules:
- Block Model Editor (BME) - Robust and efficient 3D editor to import, create, manipulate and export block/grid and surface/polygon data objects,
- Model Run Manager (MRM) - Processor to generate gridded geometry, write model-ready input files and queue/execute/monitor model runs.
- Model Results Analyzer (MRA) - Robust data visualization engine to read, display, analyze and animate a large variety of model-specific data types/files.
- Project Documentation Generator (PDG) - Fast and easy process to create, organize and record sequences of data views, animations, narrations, audio and video segments.
Our FDS Team
Our FDS Team
Our FDS Team
SimGrid Solutions is now looking to organize a group of SGS-GMS-FDS alpha-test advisors who will subsequently become beta-release first-users. These advisors/users must be experienced FDS modelers who are interested in developing a new approach to FDS project development, analysis and documentation by suggesting and providing test projec
SimGrid Solutions is now looking to organize a group of SGS-GMS-FDS alpha-test advisors who will subsequently become beta-release first-users. These advisors/users must be experienced FDS modelers who are interested in developing a new approach to FDS project development, analysis and documentation by suggesting and providing test projects to verify, validate, improve and further develop SGS-GMS-FDS. They must be willing to help SimGrid Solutions identify and prioritize the development of any remaining functionality necessary to reach the first release of SGS-GMS-FDS.
Upon beta-release, SimGrid Solutions will also need one or more product champions to form a consulting partnership (e.g. SimGrid Services) to provide contract sales, services and support for the global utilization and distribution of SGS-GMS-FDS.
For those experienced FDS users interested in getting involved in the final testing, development and release of SGS-GMS-FDS, please send a description of your personal interests, qualifications and objectives to fds@simgridsolutions.com.
Our Vision
Our FDS Team
Our FDS Team
Subsequent to the first release of SGS-GMS-FDS, SimGrid Solutions is hoping to partner with a group of fire modeling experts to provide consulting solutions, modeling services and software sales/support. The software development and maintenance of SGS-GMS-FDS will probably remain within SimGrid Solutions, though it would be possible for
Subsequent to the first release of SGS-GMS-FDS, SimGrid Solutions is hoping to partner with a group of fire modeling experts to provide consulting solutions, modeling services and software sales/support. The software development and maintenance of SGS-GMS-FDS will probably remain within SimGrid Solutions, though it would be possible for SimGrid Solutions to license the core SGS-GMS library to an expert third party who would control the application-specific code that sits on top of SGS-GMS.
SimGrid Solutions' ultimate objective is to use our GMS core library to improve or replace the user interfaces of a variety of numerical models (e.g. explosion, dispersion, energy, etc.)
Also, SImGrid Solutions is looking for an experienced heat transfer modeler to help us test, validate, release, support and further develop our SGS-GMS-HTM model (see SGS-GMS-HTM demo video above). Please send a description of your personal interests, qualifications and objectives to htm@simgridsolutions.com.
Please send your ideas for our current and future products to skoch@simgridsolutions.com.
